Here are some of our latest industry leading technologies.
Needle & nozzle technology for pixel perfect atomization.
Sagola’s new Hex System™ technology delivers ultra-precise control over droplet formation - ensuring each particle stays perfectly uniform in flight, eliminating mottling and ensuring a flawless finish.
Sagola’s patent-pending Hex System™ features a uniquely designed hexagonal needle and nozzle that deliver two standout advantages:
Ultra-Uniform Fan Pattern
Engineered for perfect paint distribution, the Hex System™ eliminates mottling and uneven metallic particle alignment - especially when spraying silvers, golds, and other high-visibility finishes. The result, a consistently smooth, professional-grade basecoat.
Superior Atomization at Lower Pressure
Achieve a flat, high-quality finish without overloading your air system. The Hex System™ maintains droplet integrity and prevents fan pattern splitting - common issues when spraying at excessive pressure.
Built for precision. Trusted for performance. When fitted to any Sagola 4600 DFT spray gun, Sagola’s Hex needle and nozzles redefine spray control - one flawless finish at a time.

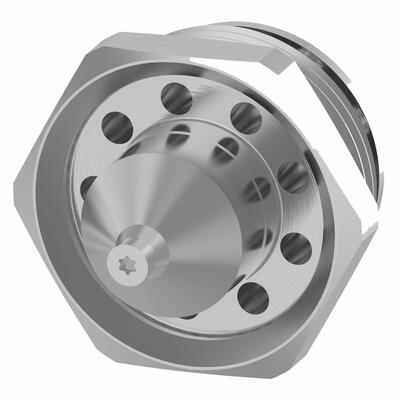

Nozzle with Hex System™
Hexagonal nozzle. Sagola technology for perfect atomization.

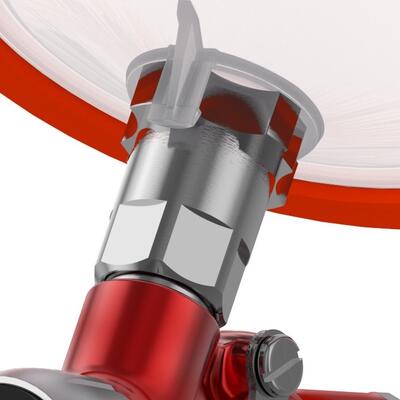

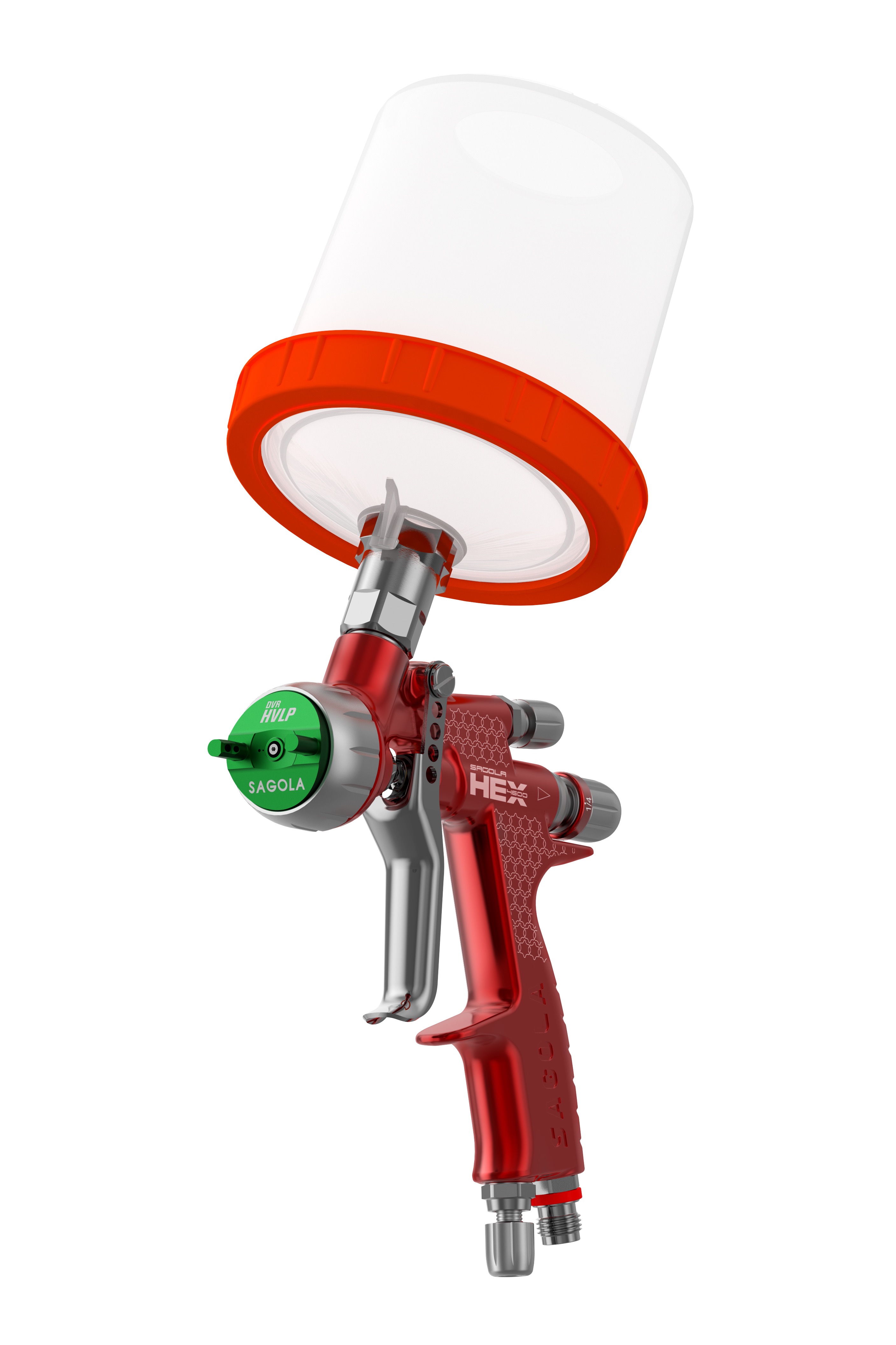

Includes adapter for DPC
Includes adapter for Sagola DPC disposable cups.

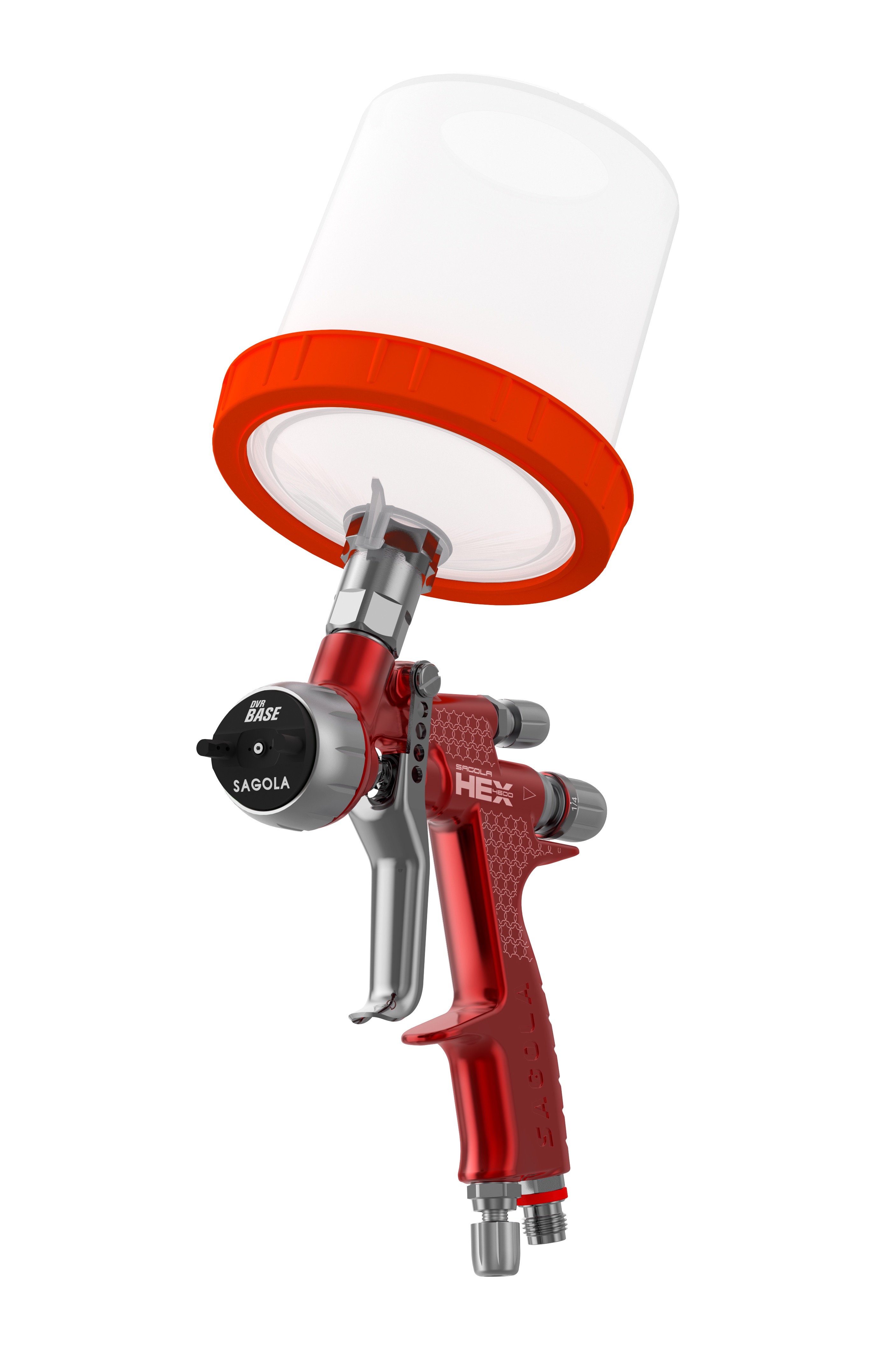

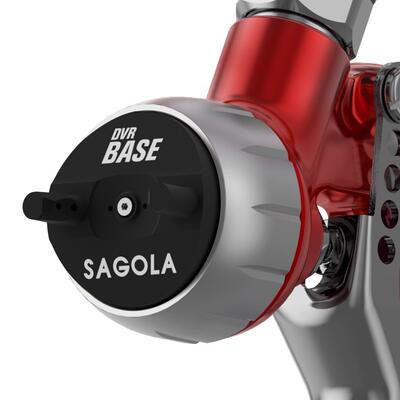

| Air Cap DVR BASE | |||
|---|---|---|---|
|
1.20 | Waterborne and solvent basecoats | |
| 1.20 XL | Waterborne and solvent basecoat | ||
| 1.30 | Waterborne and solvent basecoat | ||

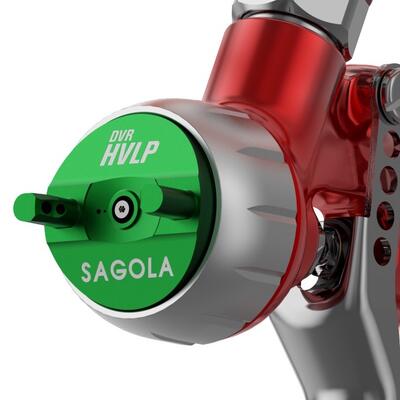

| Air Cap DVR HVLP | |||
|---|---|---|---|
|
1.20 | Waterborne and solvent basecoats and specialist coatings | |
| 1.20 XL | Waterborne and solvent basecoats and specialist coatings | ||
| 1.30 | Waterborne basecoats and and specialist coatings | ||

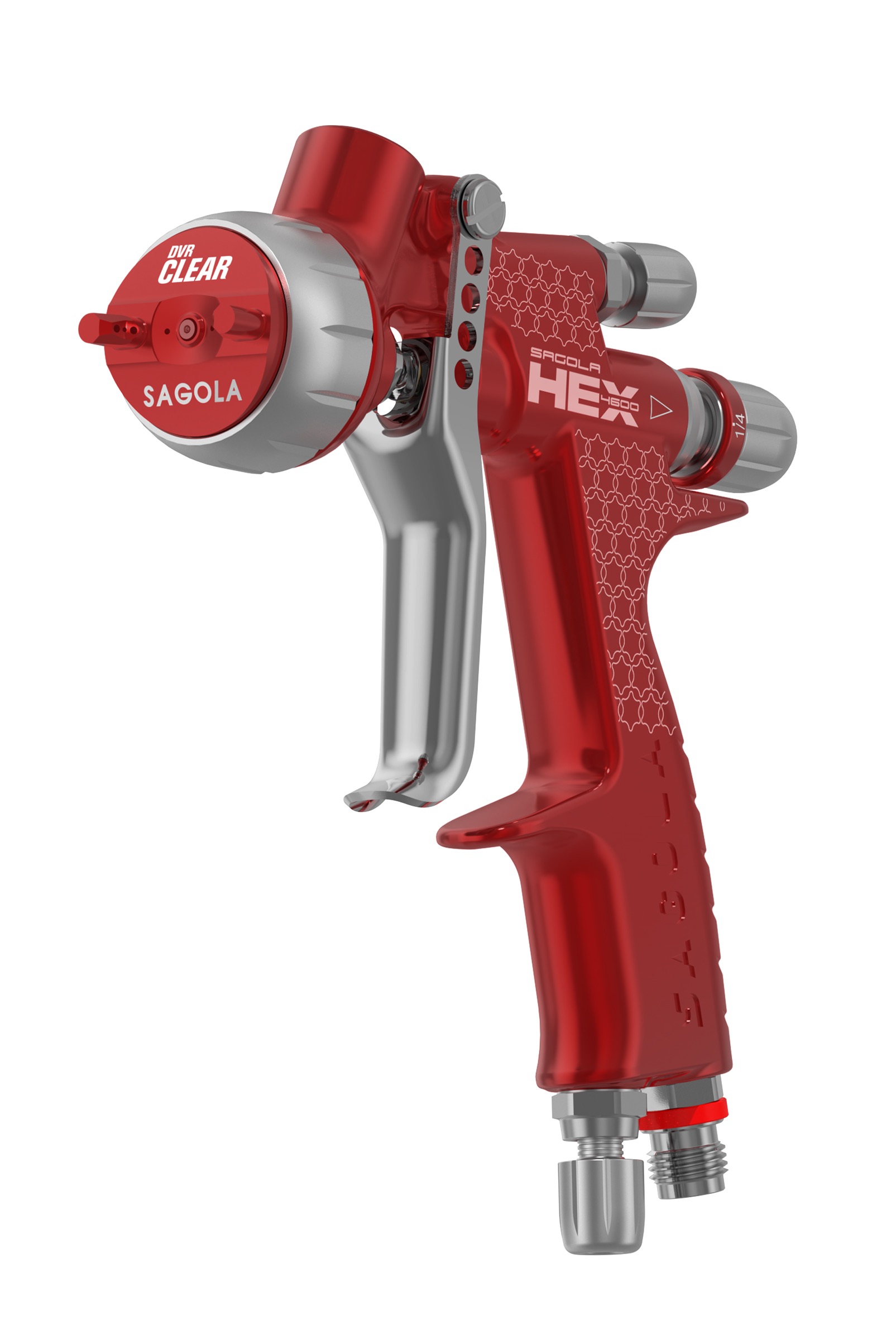

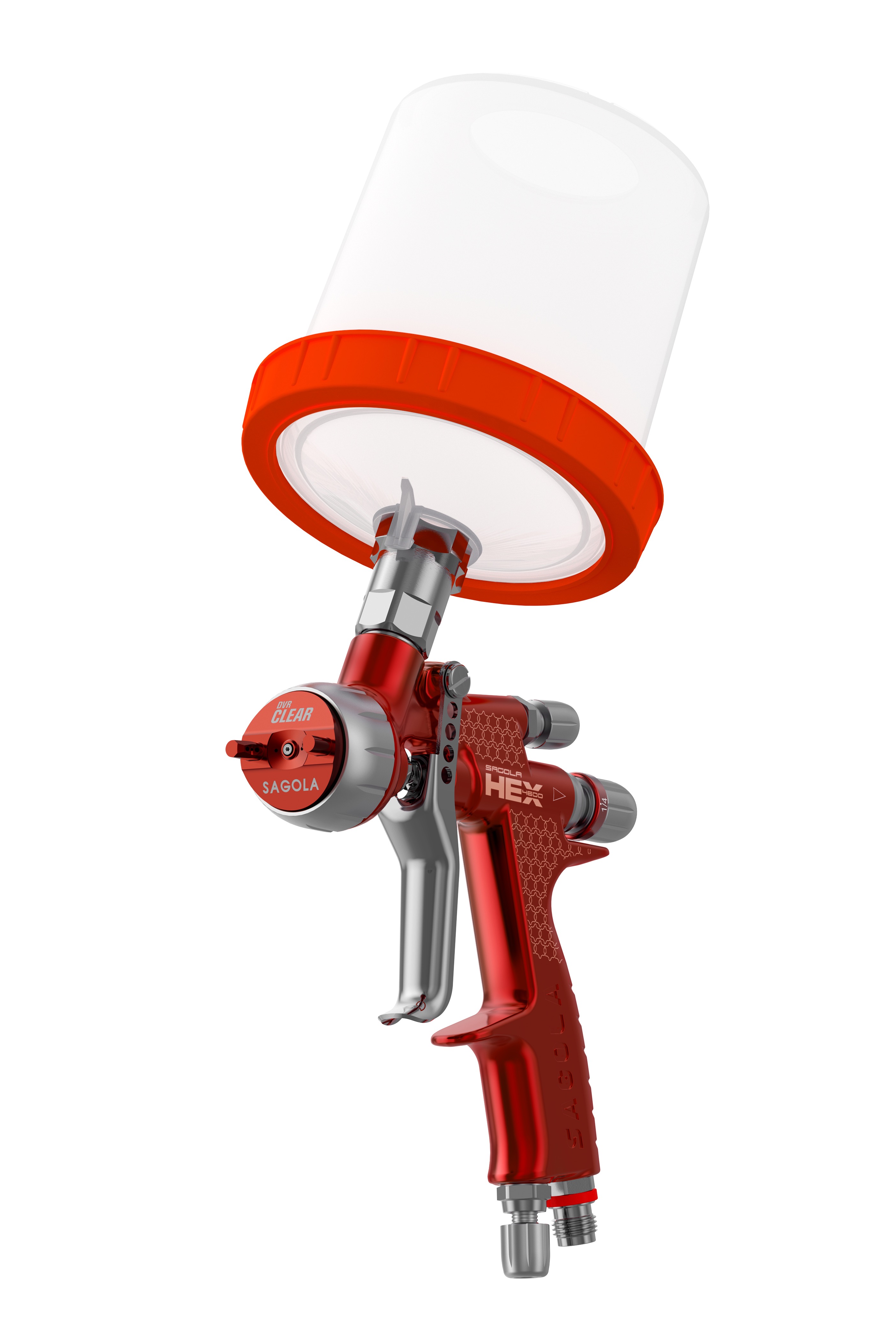

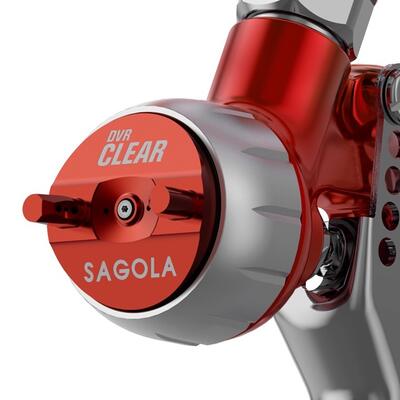

| Air Cap DVR CLEAR | |||
|---|---|---|---|
|
1.20 | HS/UHS Clearcoats and single stage paints | |
| 1.20 XL | HS/UHS Clearcoats and single stage paints | ||
| 1.30 | HS/UHS Clearcoats and single stage paints | ||

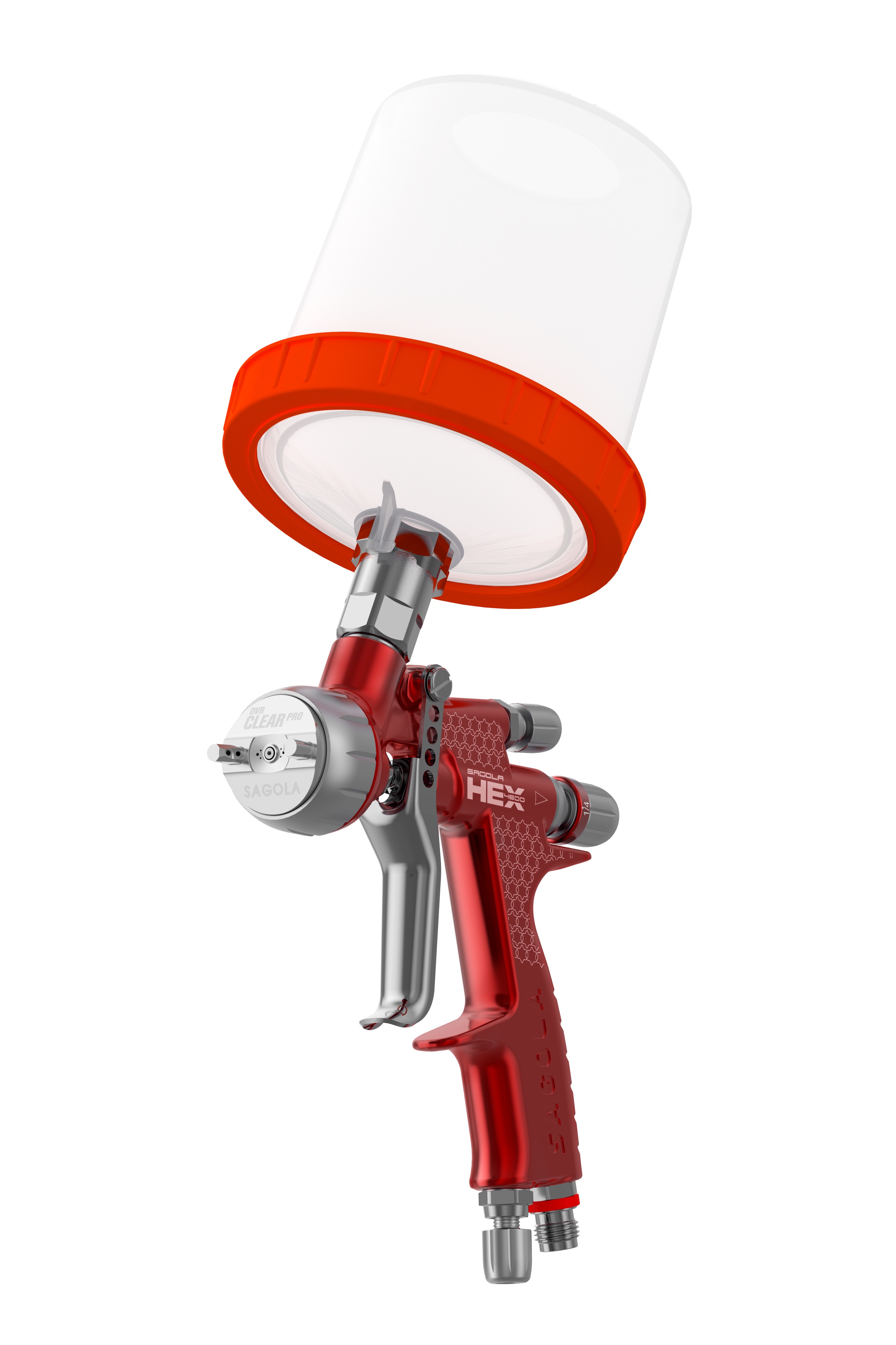

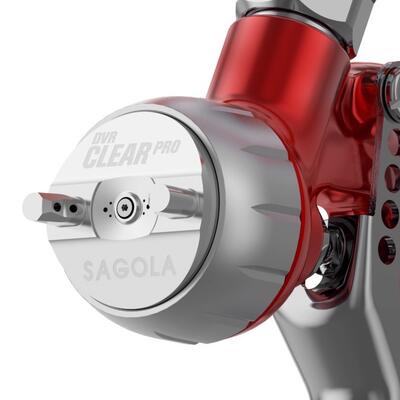

| Air Cap DVR CLEAR PRO | |||
|---|---|---|---|
|
1.2 | High gloss in express drying clearcoats | |
| 1.2 XL | High gloss in express drying clearcoat | ||
| 1.3 | High gloss in express drying clearcoats | ||
| Weight without cup | 468 g (1.03 lbs) |
| Dimensions without cup | 161 x 19 x 187 mm |
| Air inlet couplings | BSP 1/4" M |
| Paint filter | 80 meshes |
| Recommended working pressure | 1.4 - 2.2 bar (20.3 - 31.9 psi) |
| Materials in contact with the product | Anodized Aluminium, Stainless Steel, Polyoxymethylene |
| Code | Version |
|---|---|
| 10142478 | Sagola 4600 Hex Base Spray Gun - 1.20XL |
| 10142479 | Sagola 4600hex CLEAR Pro Spraygun 1.20XL |
| 10142480 | Sagola 4600 Hex CLEAR Spray Gun 1.20XL |
| 10142481 | Sagola 4600 Hex HVLP Spray Gun 1.20XL |
| 10142482 | Sagola 4600 Hex Base Spray Gun - 1.20xs |
| 10142483 | Sagola 4600hex CLEAR Pro Spraygun 1.20xs |
| 10142484 | Sagola 4600 Hex CLEAR Spray Gun 1.20xs |
| 10142485 | Sagola 4600 Hex HVLP Spray Gun 1.20xs |
| 10142470 | Sagola 4600 Hex Base Spray Gun - 1.20 |
| 10142471 | Sagola 4600 Hex CLEAR Pro Spray Gun-1.20 |
| 10142472 | Sagola 4600 Hex CLEAR Spray Gun-1.20 |
| 10142473 | Sagola 4600 Hex HVLP Spray Gun-1.20 |
| 10142474 | Sagola 4600 Hex Base Spray Gun-1.30 |
| 10142475 | Sagola 4600 Hex CLEAR Pro Spray Gun-1.30 |
| 10142476 | Sagola 4600 Hex CLEAR Spray Gun-1.30 |
| 10142477 | Sagola 4600 Hex HVLP Spray Gun-1.30 |

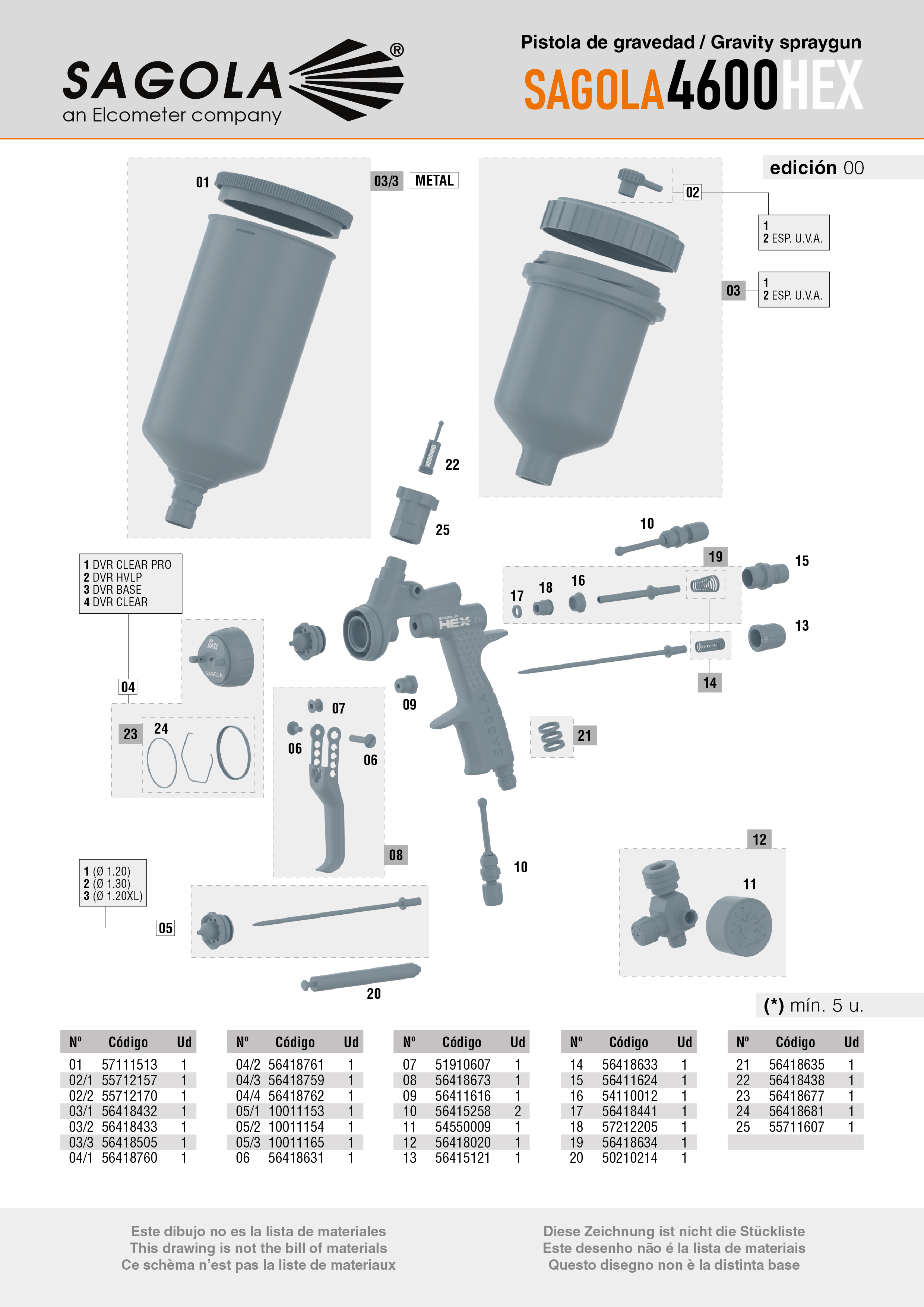

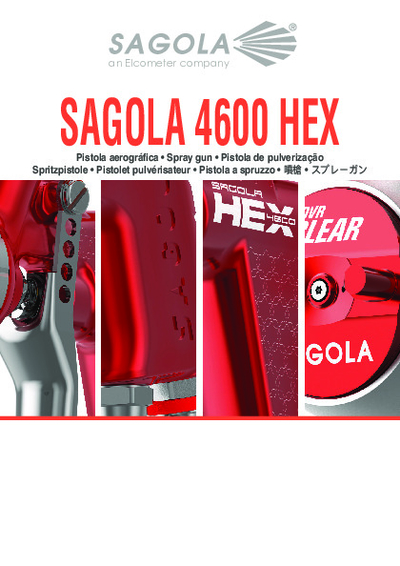

Pistola SAGOLA 4600 HEX
Manual
